Description

Attributes

• Type: Nitrogen Gas Charged
• With Coil Spring: No
• Internal Design: Tri Tube
• Adjustable Valving: Yes
• Extended Length (IN): 22.57 Inch
• Compressed Length (IN): 14.94 Inch
• Upper Mounting Style: Eyelet
• Lower Mounting Style: Eyelet
• Body Color: White
• Quantity: Single
• Universality: Vehicle Specific
• Rod Diameter (IN): 0.7 Inch
• Valving Type: Firm Compression And Adjustable Rebound Valving
• Rod Material: Steel
• Body Material: Steel
• With Reservoir: No
• Includes Dust Shield: No
• Includes Hardware: No
• Includes Boot: Yes
• Estimated Install Time (Hours): 0.5

Product

The Rancho® 9-position adjustable series delivers nine levels of performance to on- and off-road trucks, SUVs and Jeeps. Globally recognized as the first 9-position manually adjustable ride control series in the off-road market, the advanced series is ideal for on- and off-road use, towing and more. The adjustable damping enhances ride characteristics by counteracting the additional unspring mass inherent in larger tire and wheel combinations.

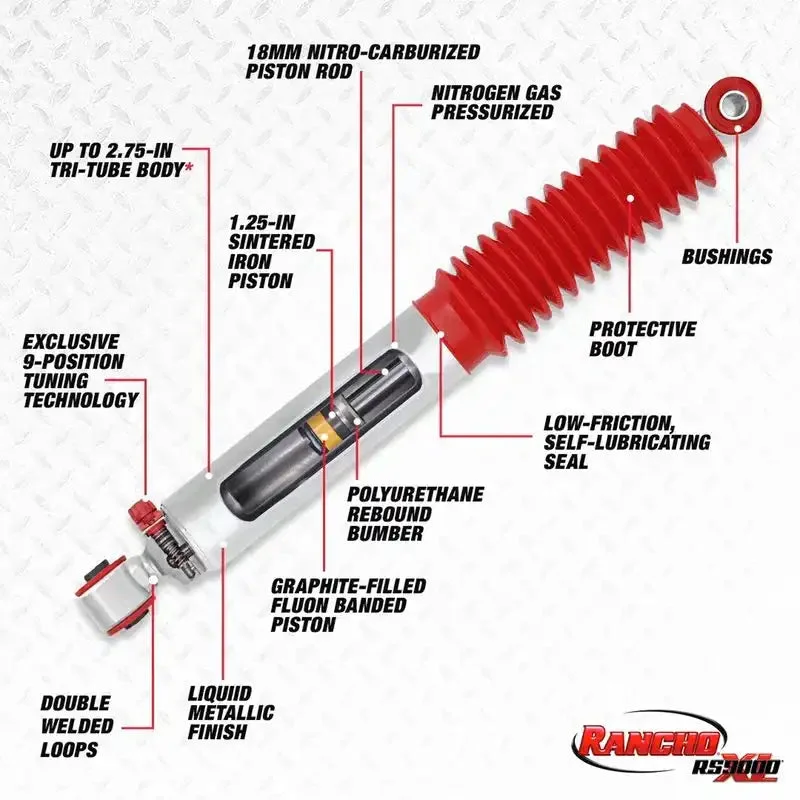

Features & Benefits

• Large, 2.75 Inch Tri-Tube Body: Increased Fluid Capacity To Operate Cooler
• Large, Heavy-Duty 18 Millimeter Nitro-Carb Rod: Increases Scuffing Resistance And Corrosion Protection
• 9-Position Tuning Technology: Allows For Optimal Performance In Any Environment
• 9-Position Adjustment Knob: Provides A Clear Understanding Of Tuning Level; Liquid Metallic Finish: Premium Long Lasting Finish
• Gas Pressurization Of Shock: Minimizes Air-To-Oil Mixture; Protective Boot: Added Protection For The Shock Rod And Oil Seal
• Graphite-Filled, Fluon Banded Piston: Provides Smoother Piston Travel And Greater Responsiveness
• 1-1/4 Inch Diameter Sintered Iron Piston: Brings Increased Structural Conformity; Double-Welded Loops: Added Strength And Durability
• Rebound Bumper: Helps Control The Rebound Motion During Harsh Driving Conditions
• Low-Friction, Self-Lubricating Seal: Provides An Extra Layer Of Defense Against Dirt And Debris
• Limited Lifetime Warranty
