Description
Attributes
- Compass: Interface for use with third party, pre-existing fluxgate compass
- Control Type: Pushbuttons
- Dimensions: Control head: 8.0″W x 3.26″H x 3.6D
- Display: 2″ LCD
- Drive Unit: Not Included
- Interface: 1 ea. NMEA 0183 in/out
- Processor: Contained in the control head; optional motor drive controller required
- Remote Options: Optional second station, rudder angle indicator, jog lever
- Rudder Feedback: Rotary (PN: 20330008)
- Steering Type: Hydraulic or constant-running (solenoid)
- Vessel: Mid-sized powerboats up to 60′
Product

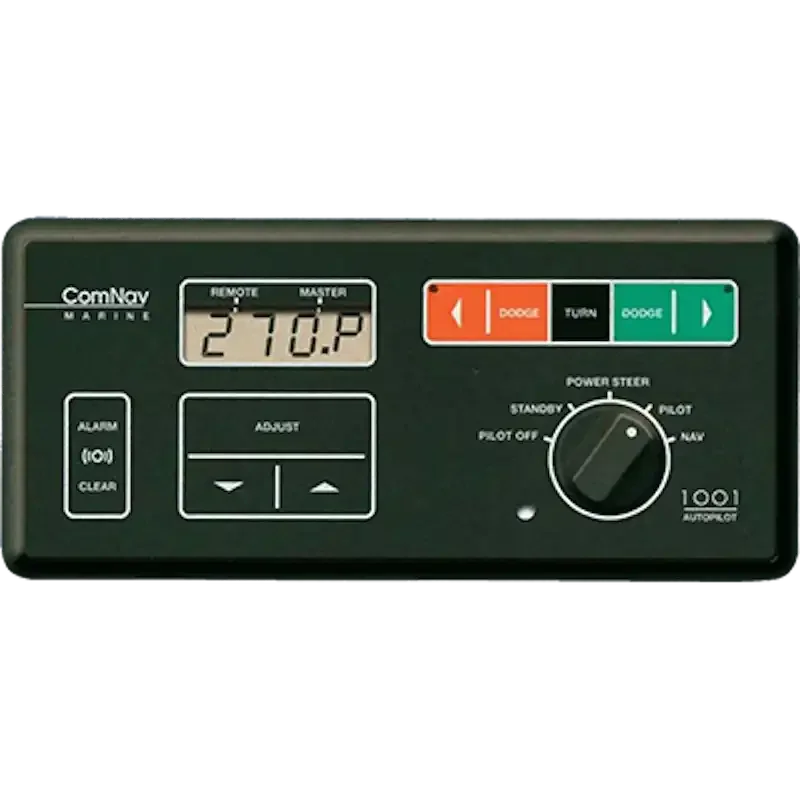

ComNav 1001F AutopilotWith Fluxgate Compass InterfaceThe 1001 Autopilot from ComNav is designed to work on a wide variety of boats, from small pleasure craft to massive with the pilot is an interface designed to work with a wide variety of pre-installed third-party fluxgate option can save hundreds of dollars when replacing an existing pilot or when the vessel already has a compass installed for radar/chartplotter 1001 Autopilot is capable of being used with most any type of steering system, and is especially useful when there is a need to retrofit to an older one of several available drive boxes (sold separately) the 1001 can be used with mechanical, hydraulic, or constant-running (solenoid) steering their introduction in 1982, ComNav Autopilots have gained a reputation for top performance and reliability in even the harshest sea -in diagnostics, self test, visual and audible alarms, plus a three year extended warranty make the 1001 one of the most reliable autopilots on the market today.
Features & Benefits
- Three turn functions: Continuous, Emergency and “U” Turns
- Water resistant Control Head
- Ability to add a full-function second station or remote control
- Automatic trim;Adjustable yaw, turn rate and rudder settings
- Easy course changes, from one degree to major changes
- Fast and Slow Modes may be automatically implemented by Nav device
- Ten selectable steering parameters for both Fast and Slow Modes
- Digital display of rudder angle; Nav mode accepts NMEA 0183 information
- Output for optional analog rudder angle indicator, up to 4 stations; Backlit LCD display for comfortable viewing, Adjustable brightness and contrast
- Limited One year Warranty; three years if installed by an authorized dealer
