Connector Set, M/P 150 US, Female-Fast Shipping

Description

RCS-030 – Connector Set, M/P 150 US, Female
This weatherproof connector set is recommended for the following medium-currect applications:

GM Fuel Pump Modules

SPECIFICATIONS (KIT):

WIRE GAUGE (AWG): 18 Max.

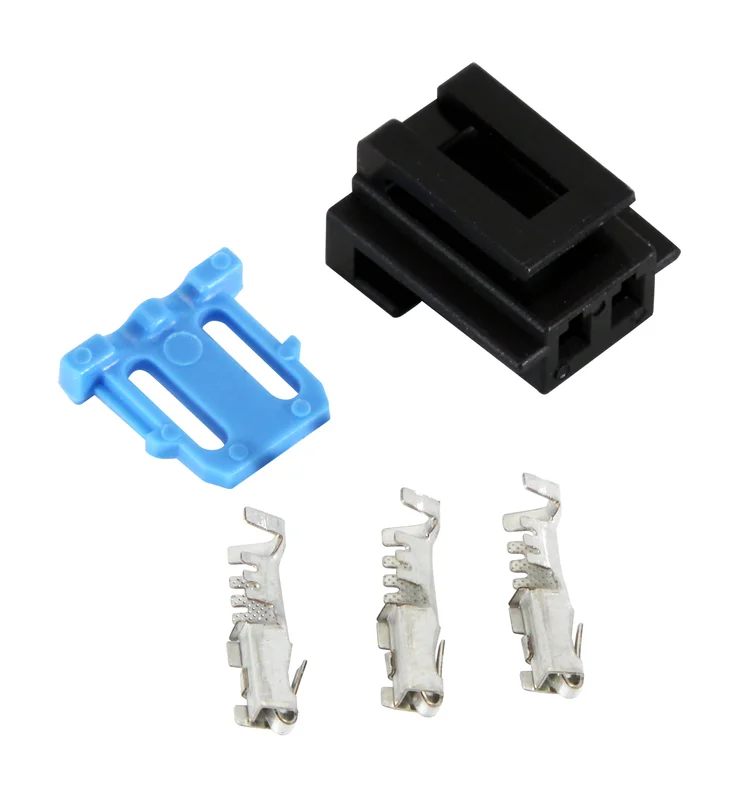

KIT INCLUDES:

1 x Female Connector Body

1 x Terminal Locks

3 x Female Terminals (1 spare)

Proper B-type crimpers and soldering equipment are recommended to properly assemble this connector set.
CONNECTOR SPECIFICATIONS:

CURRENT RANGE (AMPS): 0-14

TEMP RANGE °C: -40 to 125

RESISTANCE:

VOLTAGE DROP:

CENTERLINE SPACING (mm): 6.0

BLADE WIDTH (mm): 1.5
