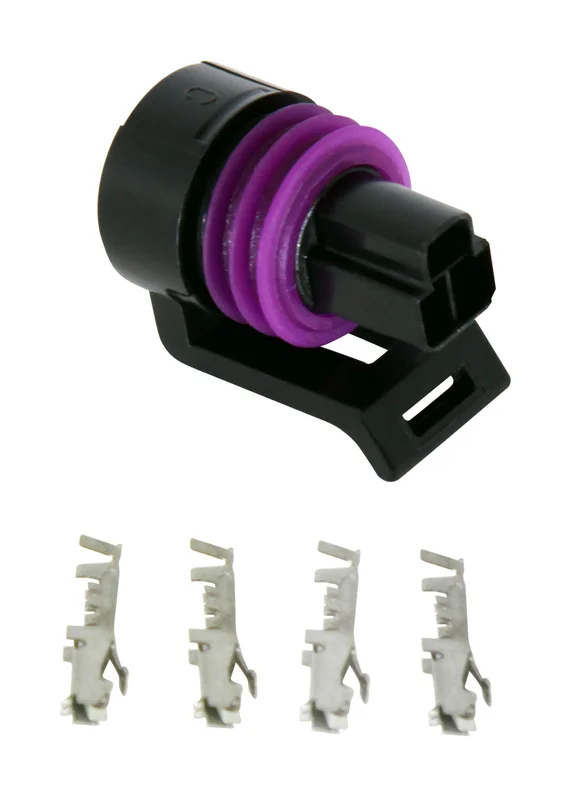

RCS-046 – Delphi 3-Way M/P 150.2 Connector Set – Throttle Position Sensor (TPS)
This connector set is commonly used on many mid to late model GM engine harnesses for the engine’s throttle position sensor. Typical applications are repair or conversions / upgrades.
FEATURES:
Fully Plug and Play with the factory TSP sensor
OE-type weatherproof connector
4 terminals included (1 spare) recommended for use with 18-16 gauge wire
Recommended wire O.D. is 1.65 to 2.15mm
TERMINAL DESIGNATIONS:
|
Throttle Position (TP) Sensor 5V Reference |
Gray |
|
Sensor Ground |
Black |
|
Throttle Position Sensor Signal |
Dark Blue |
