Description
Attributes
- Color: Black
- Spark Output (Millijoules): 135 To 145 Millijoules
- Output: Capacitive Discharge
- Current Draw: 0.7 Amp Per 1000 RPM
- CD Voltage Output To Coil (V): 540 Volt
- Timing Retard: None
- REV Limiter: Yes
- Recommended Use: Street/ Drag Racing/ Circle Track
- Circuitry: Digital
- Maximum Operating Voltage: 15 Volt
- Minimum Operating Voltage: 12 Volt
- Data Acquisition: No
- Includes Coil: No
Product

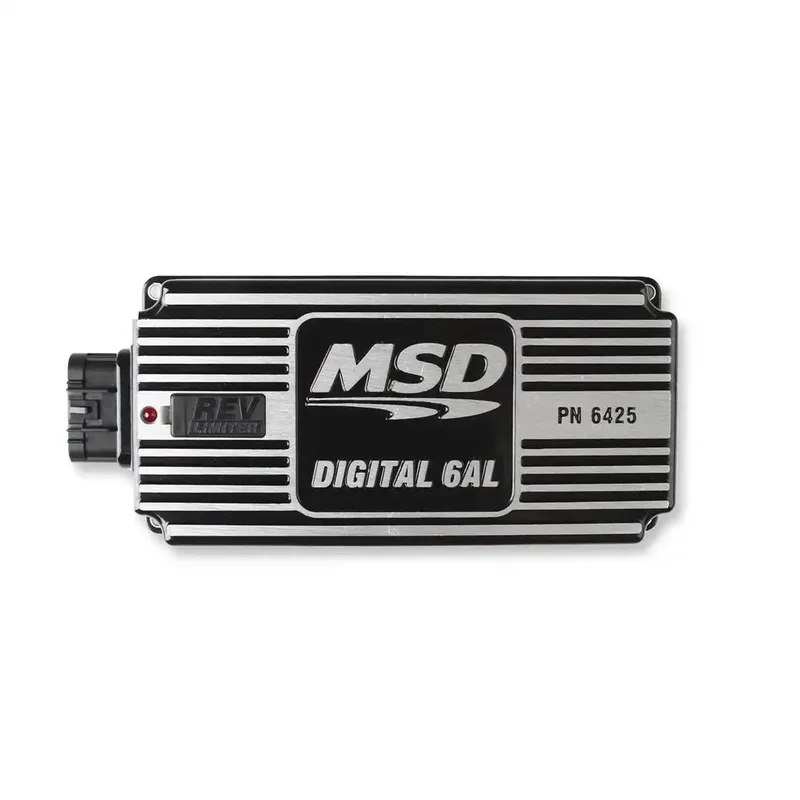

The MSD 6AL Ignition Control set the standards that other ignitions strive to reach. MSD raised the bar even higher with the revised Digital 6AL Ignition Control! The wiring of the Digital 6AL is routed out one end of the unit through a sealed and locking connector. This eases installation and keeps your wiring looking neat and clean. The rev limiter of the 6AL is located right on top of the housing for easy access to the two rotary dials to set the limit in 100 RPM increments. Inside the Digital 6AL you’ll find a microprocessor that monitors and controls every firing and rev limit. The circuits are updated with efficient components that help the ignition produce more power while drawing less current! In fact, the Digital 6AL delivers over 530 Volts to the coil with up to 135 MilliJoule of spark energy for every firing! Increased output combined with MSD’s proven multiple spark series is a win-win situation! Both ignitions are compatible on 4, 6 or 8-cylinder engines with 12-Volt, negative ground electrical systems. They’ll accept trigger inputs from breaker points, amplifiers and magnetic pickups.
Features & Benefits
- High Output With 530 Volts And 135 MilliJoule Of Spark Energy
- Efficient Components Use Less Current To Produce More Power
- Built-In LED For System Checks
- All Wires Exit Through A Locked, Sealed Connector
- Compatible With 4, 6 Or 8 Cylinder Engines
- Limited 1 Year Warranty
